13.3" Black/White ePaper Display
13.3" Black/White ePaper Display
E-PAPER
13.3"
SPI
Large 13.3" ePaper Display with wide viewing angles that can hold an image on the display with ZERO power.
- 13.3" Black andWhite display
- 1600 x1200 pixel resolution
- SPI Interface
- High contrast pure reflective mode
- Operating Temperature: -15° to 65°C

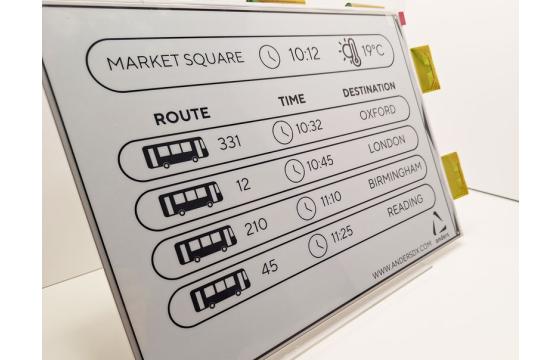

It is suitable for transportation information systems, retail signage systems, smart home systems, medical devices, or industrial instrumentation.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11475 |
| Display Mode | EPD |
| Screen Size | 13.3" |
| Resolution | 1600 x 1200 |
| Orientation | Landscape |
| Grey Level | 16 |
| Reflectivity | 35 |
| Interface | SPI |
| Operating Voltage | 3.3V |
| Operating Temperature | -15° to 65°C |
| Dimensions | 285.8 x 213.6 x 0.78 mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
