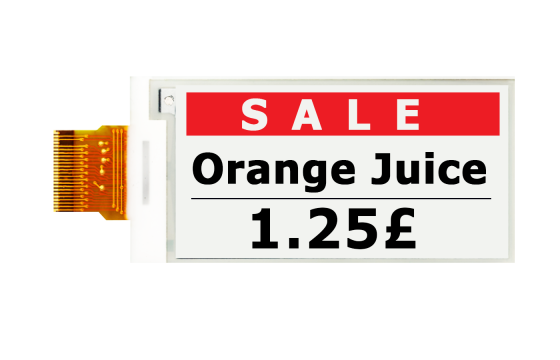

2.66" Black/White/Red ePaper Display
2.66" Black/White/Red ePaper Display
E-PAPER
2.66"
SPI
ePaper display with wide viewing angles that can hold an image on the display with ZERO power.
- Screen Size: 2.66"
- Resolution: 296 x 152
- Display Colour: White and Black
- Module Dimensions: 36.3 × 71.8 × 1.0 mm
- Operating Temperature: 0° to 50°C
Suitable for Electronic Shelf Label Systems, product tags, portable medical devices and industrial instrumentation.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11831 |
| Display Mode | EPD |
| Screen Size | 2.6" |
| Resolution | 152 x 296 |
| Orientation | Landscape/Portrait |
| Grey Level | 2 |
| Reflectivity | 35 |
| Contrast Ratio (minimum) | 8:1 |
| Interface | SPI |
| Operating Voltage | 3.0V |
| Operating Temperature | 0° to 50°C |
| Dimensions | 36.3 × 71.8 × 1.0 mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
