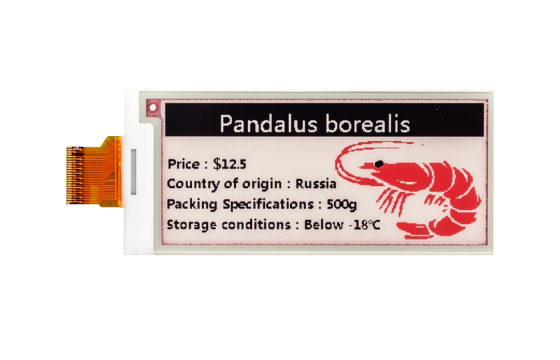

2.9" Black/White/Red ePaper Display
2.9" Black/White/Red ePaper Display
E-PAPER
2.9"
SPI
ePaper display with wide viewing angles that can hold an image on the display with ZERO power.
- 2.9" black and white display
- 128x296 pixel resolution
- SPI Interface
- High contrast pure reflective mode
Suitable for Electronic Shelf Label Systems, product tags, portable medical devices and industrial instrumentation.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11791 |
| Display Mode | EPD |
| Screen Size | 2.9" |
| Resolution | 296 x 128 |
| Orientation | Landscape/Portrait |
| Grey Level | 2 |
| Reflectivity | 35 |
| Contrast Ratio (minimum) | 8:1 |
| Interface | SPI |
| Operating Voltage | 3.0V |
| OP Temperature | 0° to 50°C |
| Dimensions | 36.7 × 79.0 × 1.2 mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
