31.2" Black/White/Red/Yellow ePaper Display
31.2" Black/White/Red/Yellow ePaper Display
E-PAPER
31.2"
RGB
ePaper display with wide viewing angles that can hold an image on the display with ZERO power.
- 31.2" display with 16 grey shades
- 2560x1440 pixel resolution
- Parallel Interface
- High contrast pure reflective mode

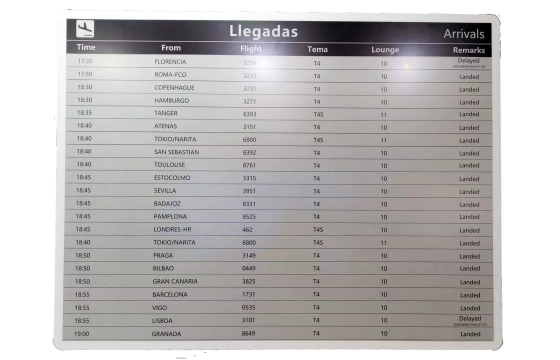

Suitable for indoor and outdoor signage applications and passenger information systems.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11205 |
| Display Mode | EPD |
| Screen Size | 31.2" |
| Resolution | 2560 x 1440 |
| Orientation | Landscape/Portrait |
| Grey Level | 2 |
| Reflectivity | 35 |
| Contrast Ratio | 12:1 |
| Interface | SPI |
| Operating Voltage | 3.0V |
| Operating Temperature | 0° to 50°C |
| Dimensions | 697.2 x 402.8 x 0.805mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
