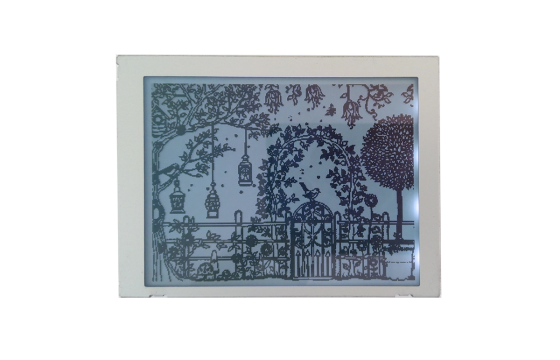

This monochrome STN mode display module with 320 x 240 number of dots and low power consumption is suitable for medical and industrial applications.
- Screen Size: 5.7"
- Resolution: 320 x 240
- Polarizer type: Transflective
- Viewing Direction: 6 o'clock
- Touch Options: CTP, RTP, None
- Module Size: 160.0 x 109.0 mm
- Operating Temperature: -20° to +70°C
- Drive method: 1/240 duty,1/13 bias
Get started on your project
For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.
Submitting your details tells us you’re OK with our cookie policy. We may send you technology and product updates which you can opt out of at any time using the link in the email.
| Feature | Specification |
|---|---|
| Part Number | YMS-320240-05 |
| Screen Size | 5.7" |
| Resolution | 320 x 240 |
| OP Temperature | -20° to +70°C |
| Touch Type | None (Optional CTP or RTP) |
| Dimensions | 160.0 x 109.0 |
| Interface | 8/16 bit parallel |
| Module Construction | COG |
| Active Area | 122.0 x 92.0 |
| Display Mode | Negative STN Blue |
| Duty | 1/240 |
| Polariser Options | Transflective |
| Viewing Direction | 6 o'clock |
* Optional feature available on this product
