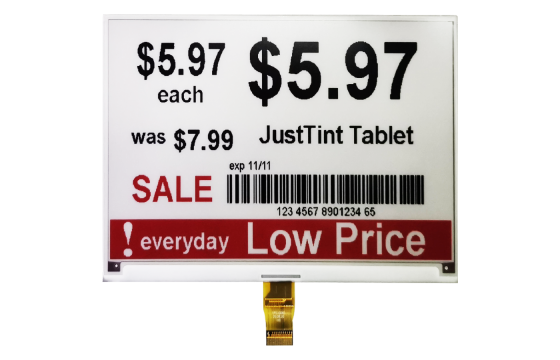

7.5" Black/White/Red ePaper Display
7.5" Black/White/Red ePaper Display
E-PAPER
7.5"
SPI
ePaper display with wide viewing angles that can hold an image on the display with ZERO power.
- Screen Size: 7.5"
- Resolution: 800x480
- Display Colour: White, Black and red
- Module Dimensions: 170.2 × 111.2 × 1.2 mm
- Operating Temperature: 0° to 50°C
Suitable for retail displays, passenger information displays, medical signage and industrial instrumentation.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11969 |
| Display Mode | EPD |
| Screen Size | 7.5" |
| Resolution | 800 x 480 |
| Orientation | Landscape/Portrait |
| Grey Level | 2 |
| Reflectivity | 35 |
| Interface | SPI |
| Operating Voltage | 3.3V |
| Operating Temperature | 0° to 40°C |
| Dimensions | 170.2 × 111.2 × 1.25 mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
