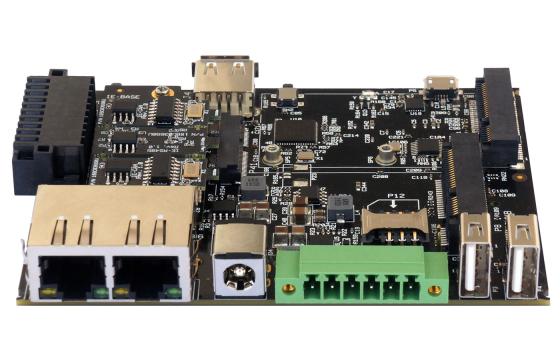

SBC-IOT-iMX8: NXP i.MX8M Mini SBC

ARM
A53

4GB

Powerful Internet of Things (IOT) Single Board Computer based on the NXP i.MX8M Mini processor designed for industrial control and monitoring.

Extensive wireless and wired connectivity including LTE modem, WiFi and Bluetooth
Extended temperature range of -40°C to 80°C
Wide input voltage range of 8V to 36V
Ideal for industrial and harsh environment.
Optional industrial I/O add-on board for additional functionality

This product is available to purchase as a development kit for proof of concept. Details of the kit contents are on the tab below.

Specifications

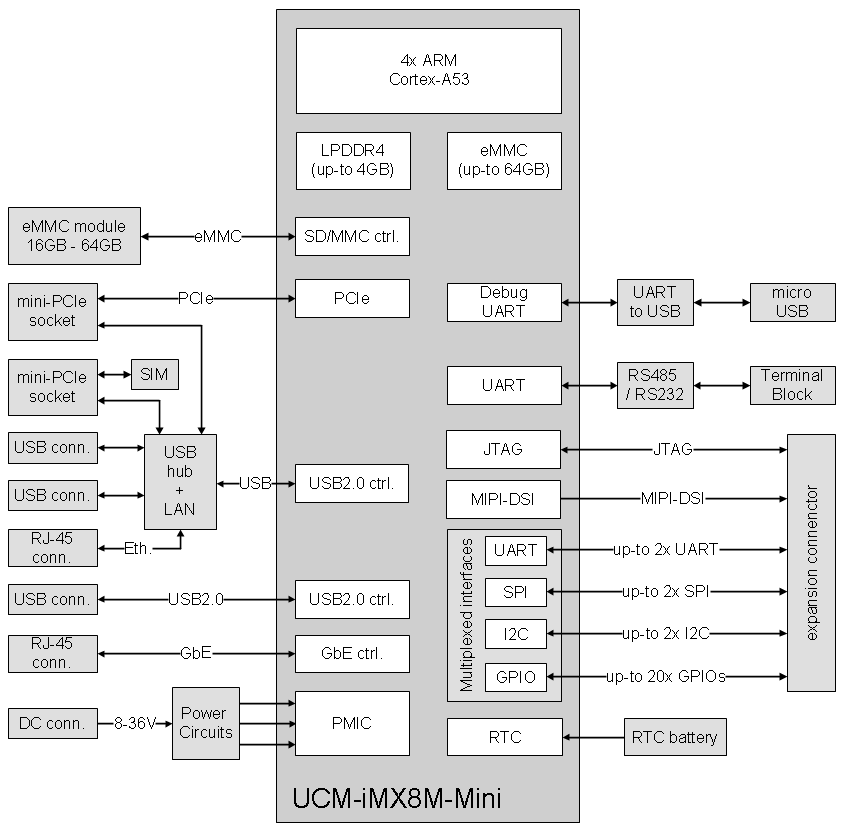

Diagrams

Development Kit

Feature	Specification
CPU Architecture	ARM Cortex A-53
CPU Manufacturer	NXP Freescale
CPU Model	i.MX8M Mini, quad-core
CPU Frequency	1.8GHz
Real Time Co-Processor	Yes
Memory	Up to 4GB, LPDDR4
Primary Onboard Storage	Up to 64GB eMMC flash, soldered on-board
Secondary Onboard Storage	Up to 64GB eMMC flash, optional module
Ethernet Ports	Up to 2
WIFI	802.11ax WiFi interface Intel WiFi 6 AX200 module
Bluetooth	5.1 BLE Intel WiFi 6 AX200 module
Cellular	4G/LTE CAT1 cellular module, Simcom SIM7600G (via mini-PCie socket) On-board micro-SIM card socket
GNSS	GPS / GLONASS Implemented with Simcom SIM7600G module
USB 2.0 Ports Host	Up to 3
PCIe	Up to 2
UART/Serial	Up to 2
GPIO	12
SPI	Up to 2
I2C	Up to 1
Interface add-on	Up-to 2x CAN-FD / RS485 / RS232, isolated, terminal-block connector Up-to 2x analog 4–20mA input
Digital I/O add-on	4x digital outputs 4x digital inputs
PoE add-on	Additional 100Mbps Ethernet port with PoE capability (powered device)
Power Supply Voltage	Unregulated 8V to 36V
Dimensions	104 x 80 x 23 mm
Operating Temperature	Commercial: 0° to 60° C Extended: -20° to 60° C Industrial: -40° to 80° C.
OS Support	Debian Linux, Yocto Project and U-Boot

* Optional feature available on this product

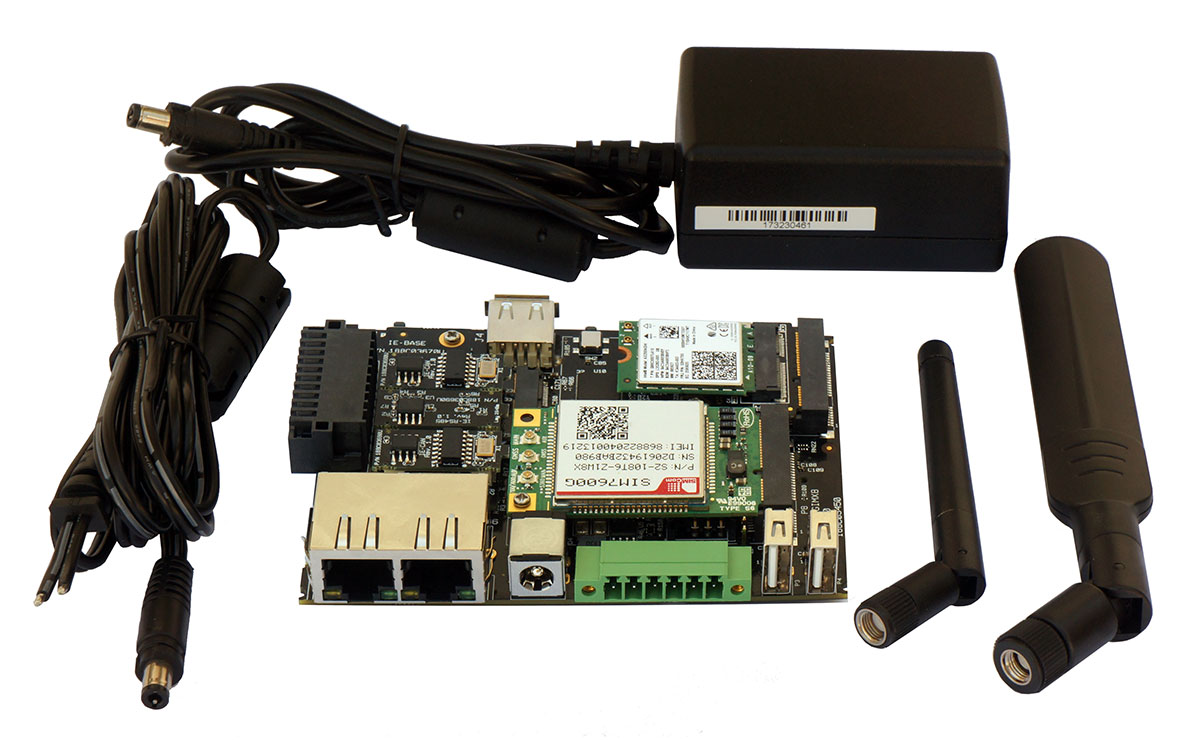

SBC-IOT-iMX8 Evaluation Kit

Kit Content:

Technical Support:

Technical support for 12 months.
45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
